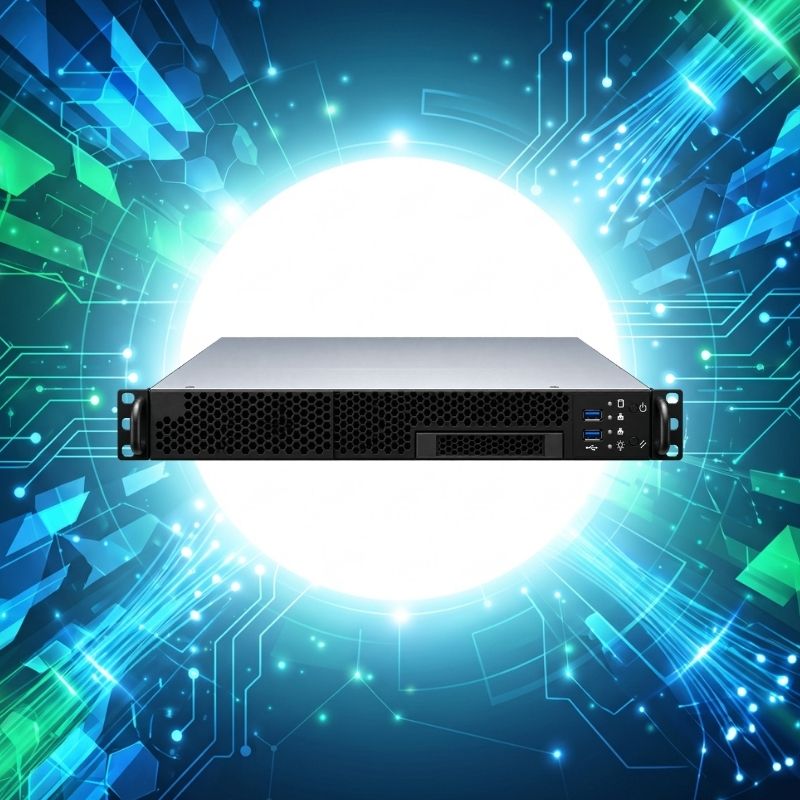

| Technical Specification |
| CPU |
Intel Core processor E‐2200 |
| Operating System |
Linux |
| Memory |
8GB DDR4 ECC |
| Network Card |
Dual gigabit PortsI350‐T2 + Intel 210‐AT dual gigabit ethernet ports |
| Storage |
1 built‐in 128GB SSD; 2Built‐in 3.5 inch 8TB HDD slots |
| PCI Expansions |
1*PCI‐E 3.0*8; 1*PCI‐E3.0*8 (X4); 1*PCI‐E3.0*16 (X8) |
| Interfaces |
VGA x1, HDMI x1, USB3.1 x6, network interface x4, DP portx1, audio input x1, audio output x1 |
| Device Access |
IPC, DVR, NVR, Decoder, etc |
| Decoding Capability |
8CH 8MP or 12CH 5MP or 16CH 4MP or 28CH 1080p or 36CH 720p or 36CH D1 (or lower) |
| Max. Number of Channel Access |
2048CH Up to 20000CH via transfer the server |
| Max. Number of Device Access |
500 Devices Up to 20000CH After it is authorized |
| Max. Number of Channel for single Transfer Service |
2048CH |
| Max. Number Of Device for single Transfer Service |
300 NVR or 500 PCI |
| Max.Decoding Output number |
128CH |
| Max Storage Access & Transfer Access |
32 |
| Max Channel & Device Access of Third‐party protocol |
16 Ch & 4 Devices ( Both Up to 20000CH after it is Authorized ) |
| Max Channel of simultaneous Preview & Playback |
256 Channel Preview & 16 Channel Playback ( Both for one Client/User ) |
| Max numbers of view |
Up to 64 view plans can be created |
| Max user access |
Max 64 users ( Extensible to 1024 users access after it is authorized ) |
| Max online Users |
64 Users Preview simultaneously |
| Vehicle Databases |
Up to 10000 Lisence Plates |
| User permission |
Self‐define |
| Real‐time view |
Up to 36CH real‐time local preview; support Channel group/view plan auto‐switch |
| PTZ |
Support PTZ protocol, PTZ permission, PTZ lock, PTZ preset management |
| Storage type |
IP SAN/Streaming media Storage |
| Record search |
Multi‐Channel synchronous search and playback |
| Incoming & Outgoing bandwidth |
640 Mbps In / 640 Mbps Out |
| General |
| Power |
AC : 100‐240V, 50/60Hz 300W ( With HDD ) |
| Working Temperature |
‐10°C ‐ 35°C Standby, ‐40°C ‐ +70°C Ambient |
| Weight |
12KG |
| Dimension(WxDxH) |
430 mm x 487 mm x 44 mm |
