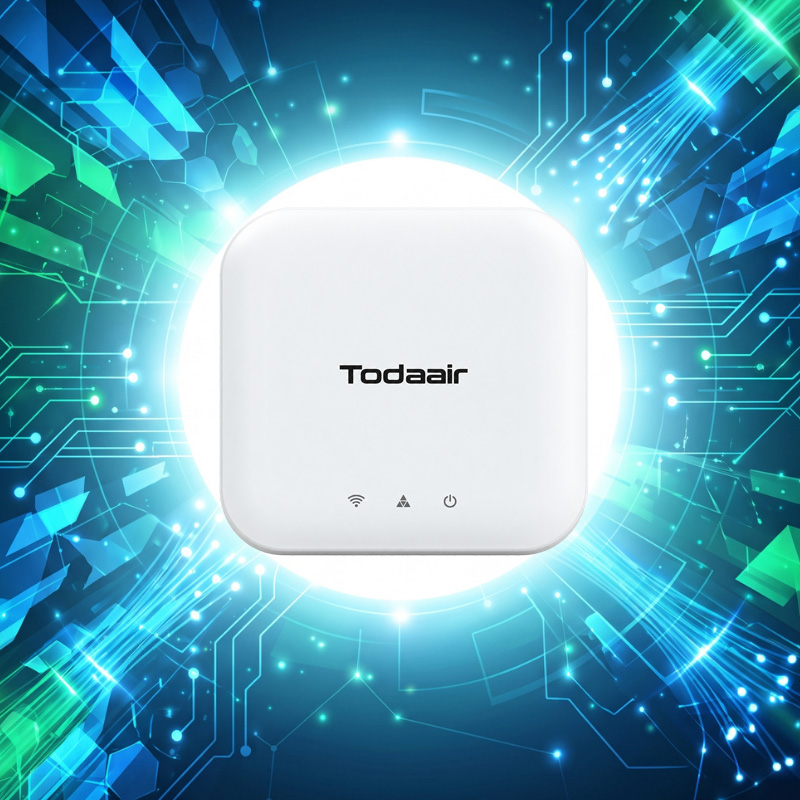

INAX35Y-M-H

INAX35Y-M-H

Key Features :

Wi‐Fi 6
Supports APP and WEB Management
Easy installation
Supports DC 12 V or PoE 48V (Standards) Power input
Supports IEEE 11 b/g/n/ax protocol
Dual Gigabit Ethernet ports, when the PoE in port inputs IEEE 802.3 at standard 48V (25W), The other port PoE out support PoEoutput function with max ≤ 10W
Dual band, data rates up to 1800 Mbps

Description

Product Specification
Chipset	MT7621 + MT7905 + MT7975
RAM	DDR3 128 Mbyte
FLASH	16 Mbyte
Interface
Wired Ports	110/100/1000 Mbps WAN/LAN1 ( PoE in )
Wired Ports	1* 10/100/1000 Mbps LAN ( PoE Out )
Operating Environment
Max Data Rates 2.4GHz	Up to 580 Mbps
Max Data Rates 5GHz	Up to 1201 Mbps
Modulation	OFDM / BPSK / QPSK / CCK / DQPSK / DBPSK
Wi‐Fi Standard	IEEE 802.11 a/b/g/n/u/af/ac/ax
Frequency Bands	2.4G 2412Mhz ~ 2472Mhz / 5.8G 5180 ~ 5825 Mhz
Max Power Consumption	≤15W
Power Output	≤10W ( supports connecting one device, the input power must be IEEE 802.3at Standard 48V PoE 25W )
Power Input	DC 12V 1.5A / PoE 48V IEEE 802.3at
Antenna	2.4GHz : 2412MHz ~ 2484 MHz
	5.8GHz : 5150 MHz ~ 5850 MHz
	Omnidirectional
	3 Dbi*4 Gain
Environmental Specification	Operating Temperature ‐30°C ~ 65°C
	Storage Temperature ‐50°C ~ 80°C
	Humidity ( Non‐condensing ) ≤ 95% ( non‐condensing )
Product Size	Dimensions: 160mm x 160mm x 35mm
Product Size	Net Weight : 0.35Kg
