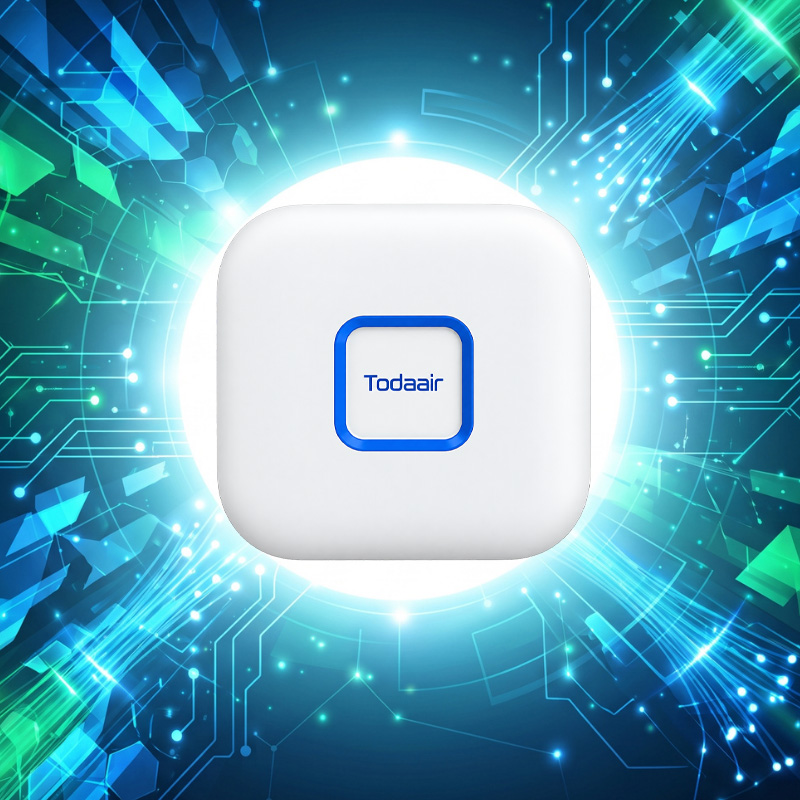

INBE53Y-H-25

Key Features :

Supports 4096‐QAM, MLO, MRU and preamble Puncture
WiFi7 Standard with a tri‐band wireless speed of 6452 Mbps (Maximum Access rate 688 Mbps at 4 GHz, 2882 Mbps at 5 GHz, and 2882 Mbps at 6 GHz)
Qualcomm solution, supporting high density deployment, 160 MHz bandwidth, and up to 320 connected devices
Supports APP and WEB Management
2×2 (2.4GHz) + 2×2 (5GHz) + 2×2 (6GHz)
1*Gigabit SFP+ port and 2* 5G Ethernet ports
Supports PoE and DC power supply, with fat/fit all‐in‐one mode
Ceiling mounted design for easy and quick installation

Description

Interface
Port	1* 10 Gbps SFP+
	1*10/100/1000/2500 Mbps adaptive WAN Port, supporting PoE 802.3at input
	1* 10/100/1000/2500 Mbps adaptive LAN Port
Button	Reset Button ( Press and hold for 6‐10 seconds to restore factory default settings)
Antenna	Built‐in omnidirectional Antenna
Operating Environtment
Operating Frequency	2.4GHz : 2400‐2483.5MHz
	5GHz : 5150‐5725MHz
	6GHz : 5925‐7125MHz
Wi‐Fi Protocol	2.4GHz：802.11 b /g /n / ax / be
	5GHz：802.11 a / n /ac / ax / be
	6GHz：802.11 ax / be
Power	PoE 802.3at, DC 2.0 12V/2A
Power Dissipation	≤ 15W
Operating Condition	Operating Temperature : ‐10°C to 55°C
	Storage Temperature : ‐40°C to 70°C
	Humidity : 5% ~ 95%
Product Size	Dimensions: 220mm x 220mm x 46mm
Product Size	Net Weight : 0.85Kg
