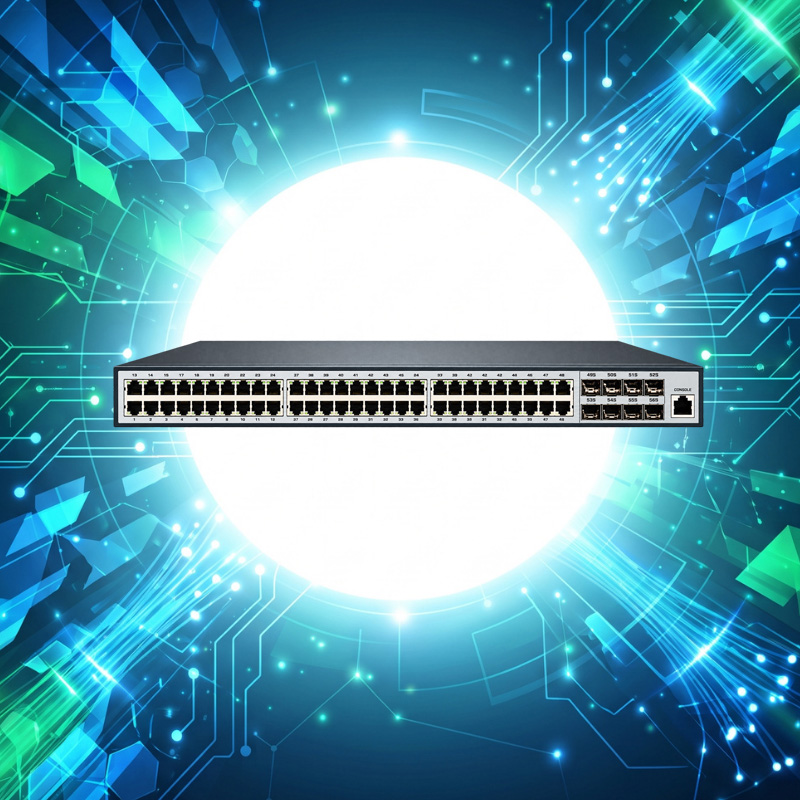

TD-SW348G-610GF

Key Features :

Support IEEE802.3, IEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x standard
RJ45 port supports automatic rollover (Auto MDI/MDIX)
Supports IEEE802.3x full‐duplex flow control and back‐pressure half‐duplex flow control
Panel indicators monitor working status and assist in fault analysis
Perfect security strategy
The three‐layer routing protocol controls and adapts to multiple services to ensure the efficiency of information transmission
Easier and more efficient WEB style management

Description

Product Specification
Interface	48*10/100/1000mbps RJ45
	6*10Gbps SFP Optical Module Expansion Slots
	1*Console Port
Switching Capacity	216Gbps
Packet Forwarding speed	160.71Mpps
MAC Address Table	32K Auto‐learning, Auto‐updating
Network Media (Cable)	10BASE‐T: UTP Category 3,4,5 Cable (≤100m)
	100BASE‐TX: UTP Category 5 Cable (≤100m)
	1000BASE‐TX: UTP category 5 cable (≤100m)
	100BASE‐FX: MMF, SMF
	10000BASE‐X: MMF, SMF
Indicator	Power, LNK/ACT, PoE
Jumbo Frame	12K Byte
Transmitting Mode	Store‐and‐forward
Standard IEEE	( 802.3 ), ( 802.3u ), (802.3ab ), (802.3z ), ( 802.3x ), ( 802.1x ), ( 802.1q ), ( 802.1p ), ( 802.1d ), (802.1w ), ( 802.3ad )
Input Voltage	100‐240V AC, 50/60Hz
Power	60W
Operating Condition	Operating Temperature : 0°C ~ 40°C
	Storage Temperature : ‐40°C ~ 70°C
	Operating Humidity : 10% ~ 90% Non‐Condensed
	Storage Humidity : 5% ~ 90% Non‐Condensed
Surge Protection	Common mode ±4KV, Differential mode ±2KV
Electronic Standard	Touch ±6KV，Air±8KV
Dimensions	440mm x 260mm x 44mm
